Functional Testing
- Bearing adjustment
- Contact pattern
- Shifting of gears
- Engagement of locks
- Clutch characteristics
- Temperature behavior loaded
- Efficiency measurement
- Spin loss measurement
- NVH measurements
- Software releases
Gearbox & Driveline Testing
Precision Testing for Reliable Powertrain Performance
Our testing solutions provide a comprehensive and controlled environment for the validation of gearbox and driveline systems. Covering everything from component-level investigations to complete system testing, they enable reliable evaluation under realistic load, speed and environmental conditions.
“Our flexible driveline test benches adapt to your requirements. Whether it's high speed/high torque or varying ambient temperatures, to name just a few examples. Our testing portfolio includes gearboxes, axles, electric drives, and transmissions from other industries."
Martin Mitterlehner
Manager, Test Operations System Gearbox & EM
What are the key methods for gearbox & driveline validation?
Functional testing
Ensures correct operation of key functions such as gear shifting, clutch engagement and overall system behavior.Durability testing
Simulates long-term usage under realistic conditions to assess component lifetime.Thermal analysis
Monitors temperature behavior to ensure stable performance and prevent overheating under different operating conditions.Performance & efficiency testing
Evaluates torque, speed and power losses to optimize system efficiency and energy consumption.NVH testing
Analyzes acoustic and vibration characteristics to improve comfort, quality and system refinement.System level validation
Examines the interaction of all components within the complete gearbox or driveline to ensure real-world performance.Lubrication & ventilation testing
Assesses oil distribution, breather function and drag losses to ensure reliability and efficiency.Ultimate strength testing
Determines system limits through static and dynamic load testing under extreme conditions.Gearbox Testing at a Glance

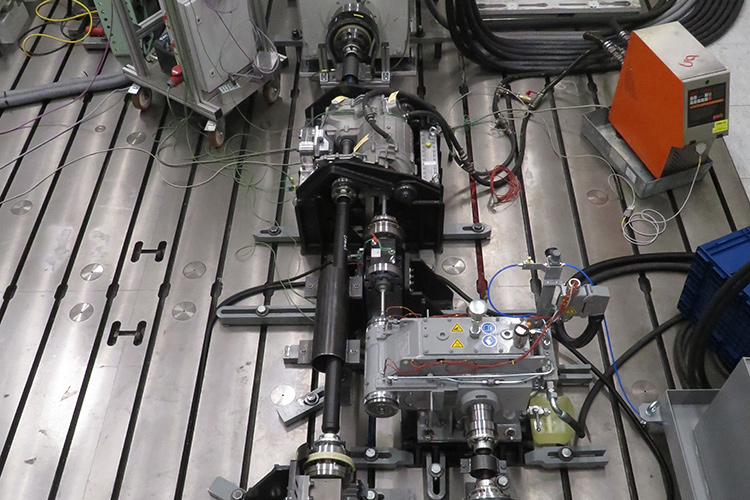

Our gearbox test benches provide a controlled and reproducible environment for the testing and validation of manual, automatic and electrified gearbox systems. From component‑level investigations to integrated drivetrain testing, gearboxes can be evaluated under defined load, speed, operational and environmental conditions.
Precise test control enables functional verification, efficiency and loss analysis, as well as durability and endurance testing, supporting reliable development decisions from prototype phase to series production.
Main Development Topics
- Component testing
- System and functional testing
- Benchmark tests
- Durability tests
- Efficiency analysis
- High dynamic tilting tests
Highlighted Specifications
- Gearbox input speed < 20,000 rpm
- Power up to 800 kW for each test bench dyno
- Wheel torque up to 60,000 Nm
- Battery simulator up to 1,2 MW
- Environmental conditions (water, oil and environment)
- Wide range of applications: passenger car, light and heavy duty trucks, offroad-vehicles, ...
Dynamic Tilt Test Bench
Inclinations
- Longitudinal ± 60°
- Lateral ± 60°
- 120°/s tilting speed
Drive
- Power 27,5 kW
- Speed ± 10.000 rpm
- Torque ± 130 Nm
Measurements
- Torque Flange; 200 Nm
- Pressure, Temperature, CAN, Analog I/O ...
Driveline Testing: From Function to Durability

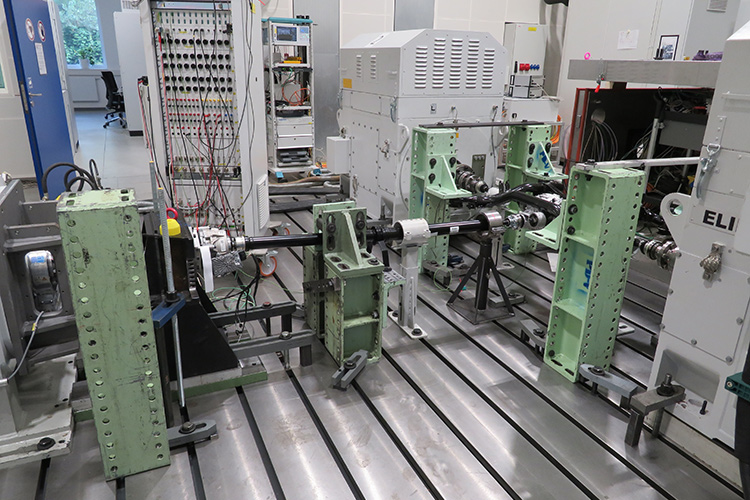

Our driveline test solutions provide a controlled and reproducible environment for the validation of complete driveline systems. From lubrication and ventilation investigations to functional, durability and strength testing, components can be evaluated under defined load, speed and environmental conditions.
Advanced testing supports the optimization of lubrication performance, ventilation behaviour and efficiency, including the assessment of temperature behaviour and drag losses. High dynamic tilting capabilities with longitudinal and lateral inclinations of up to ±60° and tilting speeds of up to 120°/s allow realistic operating scenarios to be replicated.
Precise test control enables functional verification such as gear shifting, clutch characteristics and NVH analysis, while durability and ultimate strength testing ensure reliable performance of critical components under both standard and extreme operating conditions—supporting confident development decisions from prototype phase through to series production.
Durability Testing
- Gears, Bearings
- Differential
- Seal rings
- AWD clutch
- Actuation system
- Park lock
- eMotor/Inverter
Ultimate Strength Testing
- Static ultimate strength testing
- Dynamic ultimate strength testing
How can gearbox and driveline testing improve performance and reliability?
Early identification of efficiency losses
Detects friction, drag torque and energy losses to optimize overall system efficiency.Ensures reliable functionality
Verifies correct operation of gears, clutches and drivetrain components under realistic conditions.Optimization of thermal behavior
Analyzes temperature development to prevent overheating and improve component lifespan.Validation of durability and load capacity
Tests components under long-term and extreme conditions to ensure robustness and reliability.Improvement of NVH characteristics
Reduces noise, vibration and harshness for better system quality and user experience.Enables design optimization
Provides data-driven insights to refine components, lubrication and system interactions.Reduction of development risks
Detects potential failures early, minimizing costly redesigns and delays.Supports decision-making
Delivers reliable test data to guide development from prototype phase to series production.FAQs - About Gearbox & Driveline Testing
What types of systems can be tested?
Manual, automatic and electrified gearboxes, as well as complete driveline systems including differentials, clutches and actuation systems.
Which parameters are typically analyzed during testing?
Key parameters include torque, speed, temperature, efficiency, vibration (NVH) and system behavior under load.
What is the role of NVH testing in driveline validation?
NVH testing evaluates noise and vibrations to improve comfort, product quality and overall system refinement.
What is durability testing in gearbox and driveline systems?
Durability testing simulates long-term operation to assess wear, fatigue and the lifespan of critical components.
How are extreme conditions validated?
Through ultimate strength testing, systems are exposed to static and dynamic loads to determine their performance limits and safety margins.
