Striving for best-in-class electrified platforms for an emission free future

Electrification is in full swing. Range and efficiency are still the most important criteria for the OEM and driver. We at Magna accept this challenge and we are constantly working to further develop our pure electric drives.
  • A high voltage portfolio covering the entire range for pure electric vehicles, from single components to complete systems.
  • Focusing on efficiency, safety, dynamics, and comfort provides real-world benefits for both OEMs and Consumers.
  • A platform approach with highest flexibility by using cross-project synergies with maximum scalability from 40 - 350 kW, for 400 V or 800 V systems.

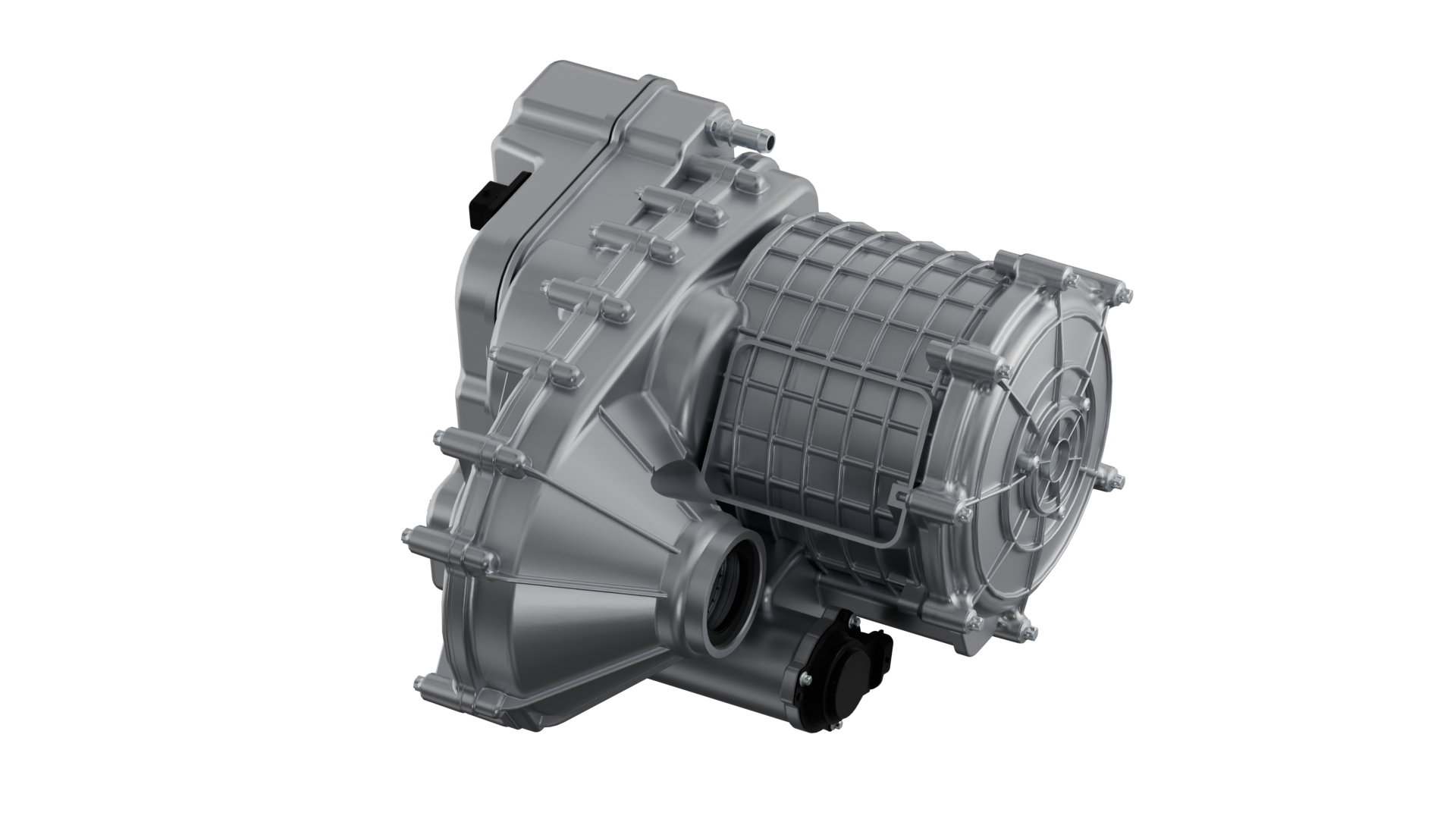

Magna's eDrive System
High HE

Magna's latest high-power eDrive System delivers world class attributes on efficiency, power-to-weight ratio, torque density and sustainability.

This new 800V eDrive was developed with a KPI-driven approach and can be applied as a highly efficient primary or complementary drive to battery electric vehicles from the C, D and E segments. It delivers a peak power of 250 kW and a peak axle torque of 5,000 Nm, and can include an optional eDecoupling.

eDrive High

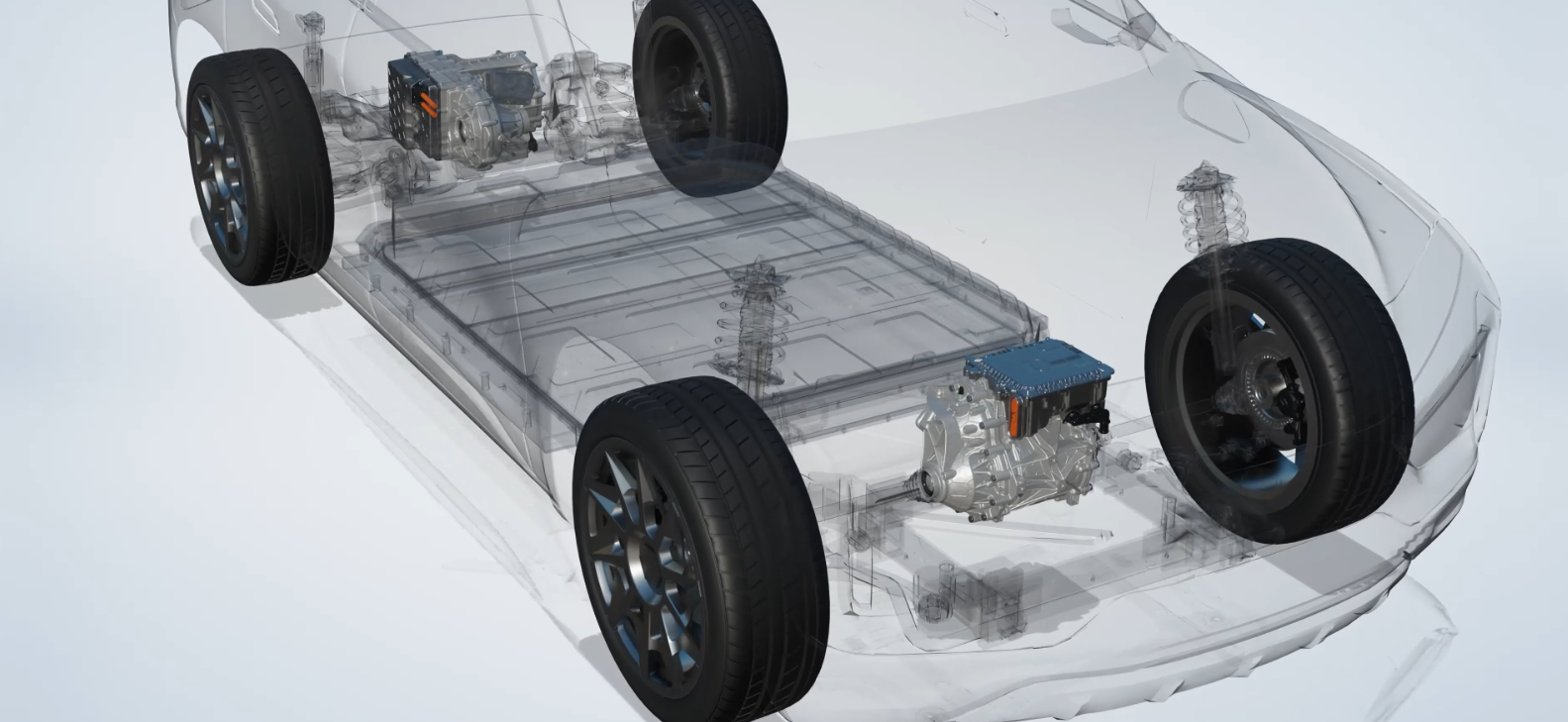

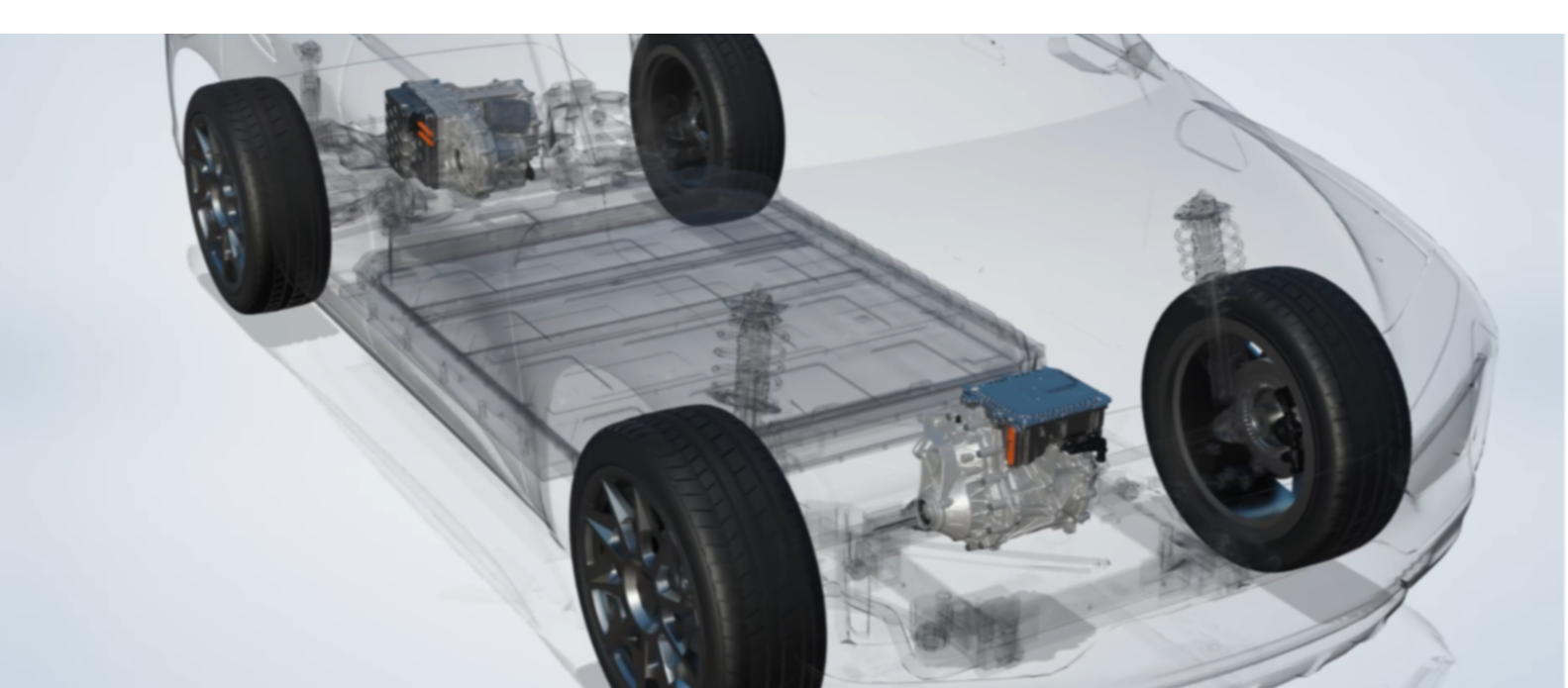

Primary, secondary and eBeam

Our eDrive Product System/Family

Whether conventional, electric, or anything in between - we've got you covered. As a leading automotive supplier, we ensure that you'll find everything you need for any type of powertrain.

Our eDrive Product System/Family

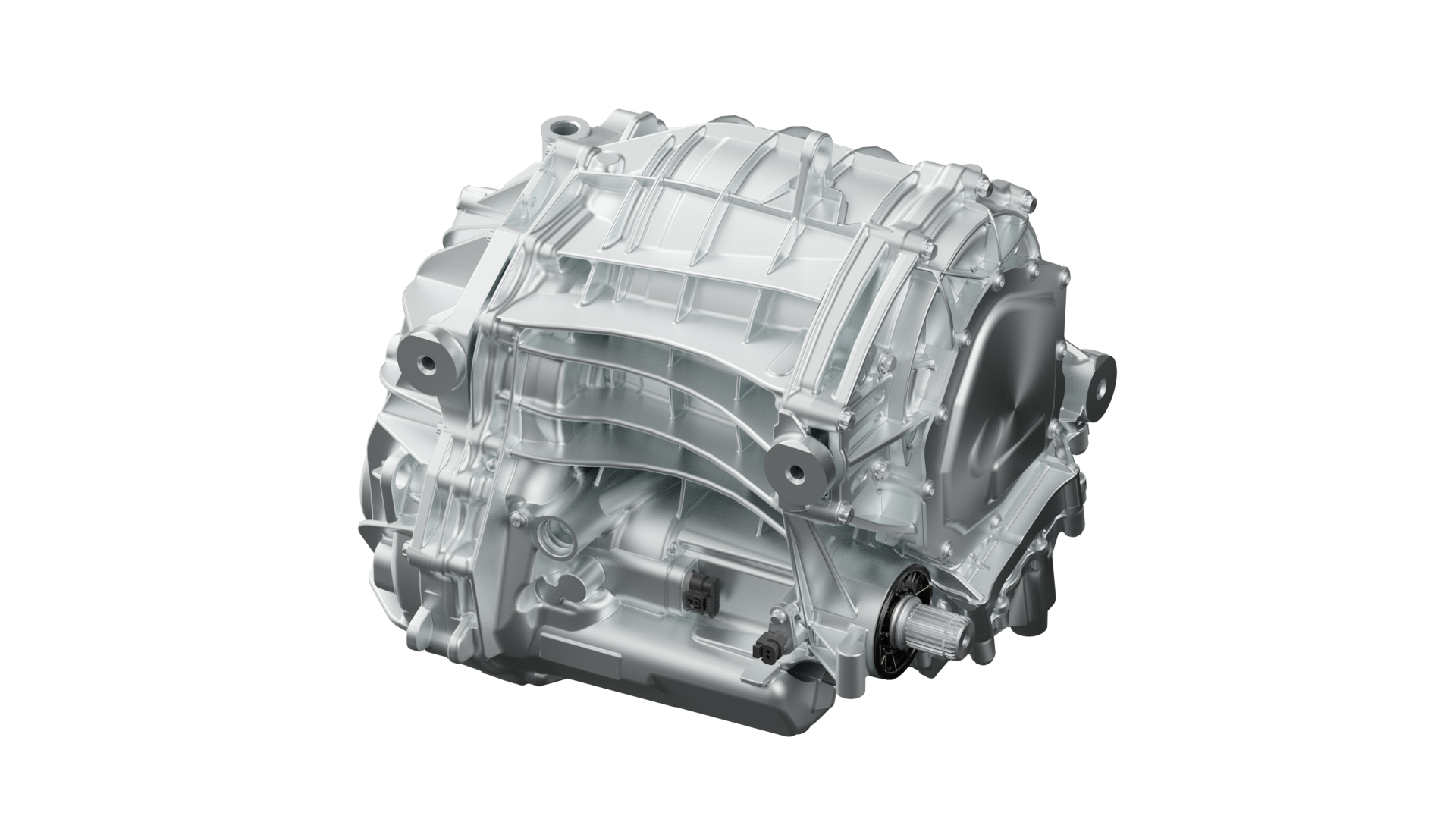

Magna eDS Low HE

eDrive System Low

  • Flexible, 80-120 kW high-voltage electric drive system for electric AWD
  • Available as a compact secondary or complementarty drive for midsive EVs or Hybrids

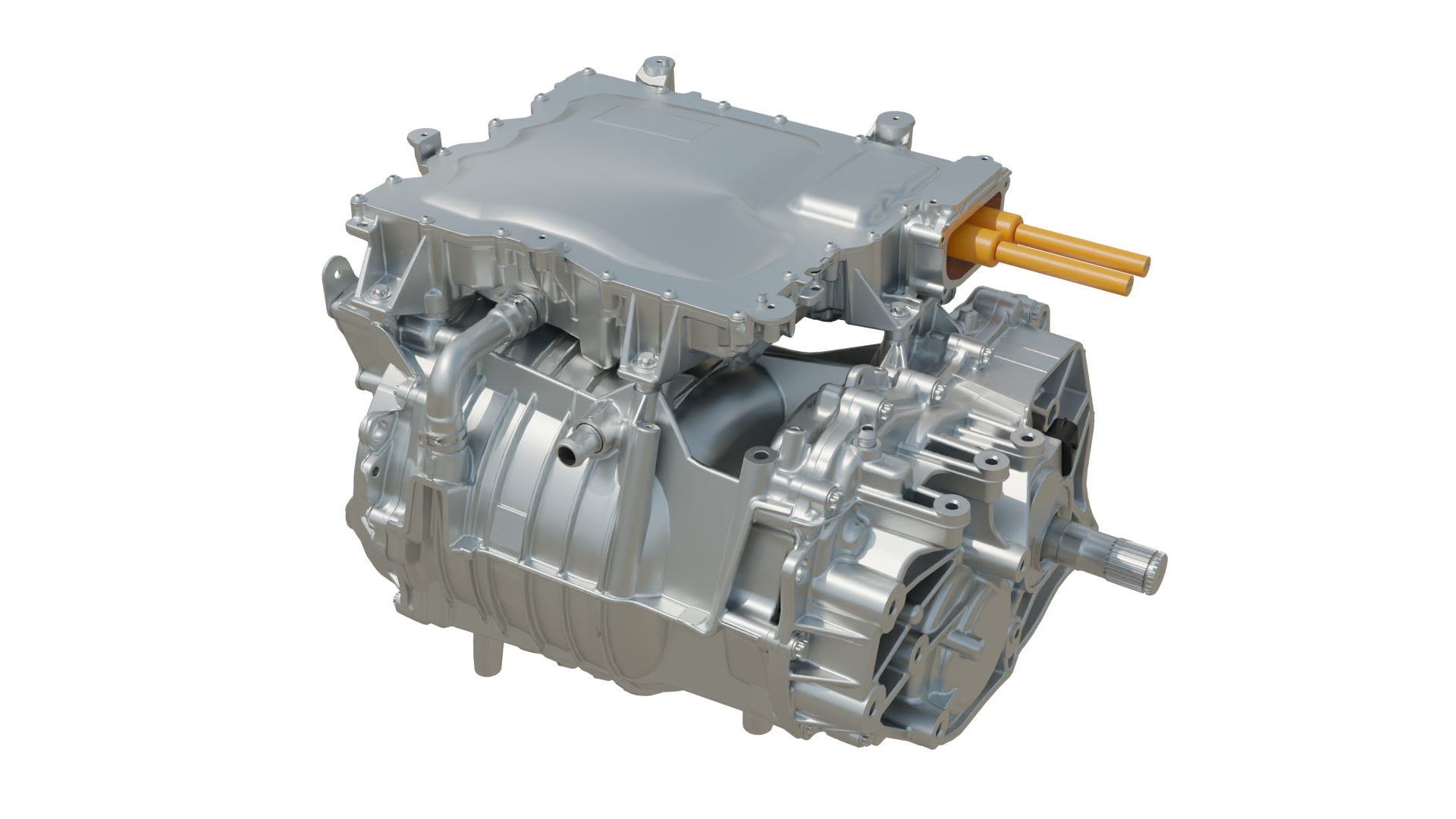

Magna eDS Mid

eDrive System Mid

  • 120-150 kW primary or secondary electric drive for BEV / (P)HEV
  • Optional park lock, torque vectoring, and Decoupling systems
Magna eDS High HE

eDrive System High

  • 250 kW high-voltage electric drive system wth 93% efficiency for BEVs
  • Industry-first ability to rotate around its drive axis for ease of integration

Magna eBeam

eBeam

  • Heavy duty electric drive system for trucks and light commercial vehicles
  • Scalable and robust for continuous-duty use with several variants and options available, including offset, coaxial, single or two speeds, locking differentials, park locks, and more

Technology Options

eTorque Vectoring

  • Twin-Clutch eTorque Vectoring system capable of supporting up to 300 kW per axle for BEV, HEV, and PHEV
  • Also available as a Duo Drive (2 E-motor) eTorque Vectoring system for applications that require more than 300 kW power per axle

eDecoupling

  • Magna’s electromagnetic eDecoupling acts as a stand alone or integrated power flow decoupler for EV applications
  • Enhance EV range by reducing drag torque of the e-motor and gearbox in primary and secondary eDrive systems
Magna Modules_Components Explosion

Modules &
Components
